Shrink Wrapping Machine

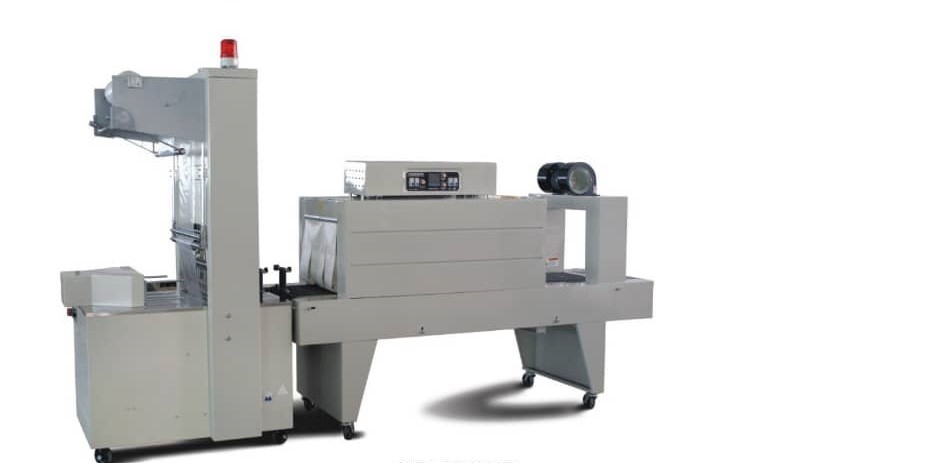

Shrink Wrapping Machine also known as semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles, etc
Description
Shrink Wrapping Machine also known as semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom tray or without bottom tray, working with BSE-5040A jet PE-film shrinks tunnel or other PE shrink tunnel BSE-5038. Enlarge packing range or custom-made machine according to customers’ requirements.
Characteristic:
1. Upper and down electromagnetic switch prevent sealing mistakes, and protect the operator. 2. Every simple and easy-to-adjust machine to match different packing sizes.
3. Simple operation and maintenance with high packing efficiency.
4. Schneider AC contractor and Intelligent temperature controller performs stable.
5. Automatic alarm security system protects machine and operator.
6. Large power conveyer motor, with step-less speed regulating, ensures smooth feeding.
7. Two large power fans make the temperature of the shrink tunnel even and stable, this ensures the excellent effect of shrinking at one time.
8. Super cooling system cools the packing and makes the figuration perfectly.
| Model | BZJ-5038B(Pneumatic) | Model | BSE -5040A |
| Power supply | 220-240V, 50-60Hz;1.8KW | Power supply | 3phase 220V/380V 50-60HZ |
| Capacity | 300-400pcs/hour | Heater power | 20KW |
| Sealing time/shrink time | 0.5-1.5s, 0-0.6s | Conveyer speed | 0 -10m /minute |
| Conveyor loading | 30kg | Tunnel size(L*W*H) | 1500*500* 400mm |
| Film thickness | 0.03 -0.12mm | Conveyer loading | 50KGS Max. |
| Max. packing dimension(L*W*H) | 450 x 270 x 350mm | Machine size | 2500*820* 1680mm |
| Min. packing dimension(L*W*H) | 250 x 60 x 60mm | Machine weight | 470KGS |
| Machine size(L*W*H) | 1020 x 830 x 1980mm | Shrink film | PE,POF,PVC,PP |
